Inline IPS placement positions a crucial security component directly within network traffic paths, creating a mandatory inspection point for all data packets. Every piece of information must flow through this control point, where the system analyzes and filters potential threats in near real-time.
Unlike passive monitoring solutions that simply observe from the sidelines, inline IPS actively intercepts suspicious traffic before it penetrates the network perimeter. While this direct placement might raise concerns about traffic flow, modern IPS hardware processes data without noticeable delays.
Ready to explore the technical aspects of this security configuration? Continue reading for deployment insights.
Key Takeaways
- Inline IPS filters network traffic on-the-fly, stopping threats before they spread
- Strategic placement near critical assets maximizes security effectiveness
- Careful configuration and failover planning prevents network disruptions
What is Inline IPS?
Network security relies heavily on proper traffic inspection, and inline IPS serves as the primary checkpoint. By design, it operates as a core intrusion prevention system function, sitting directly in the network’s data stream and forcing every packet through its inspection engines.
Unlike traditional IDS that passively monitors traffic flow, inline IPS actively controls what passes through the network. The difference mirrors that of a night watchman versus armed security, one reports incidents, while the other stops intruders at the door.
The system creates a deliberate bottleneck where all network communication must pass through rigorous analysis. This strategic positioning enables the IPS to catch and block threats before they reach their targets.
- Physically connected between network segments for complete traffic visibility
- Blocks malicious data packets without human intervention
- Placement determines the effectiveness of threat prevention

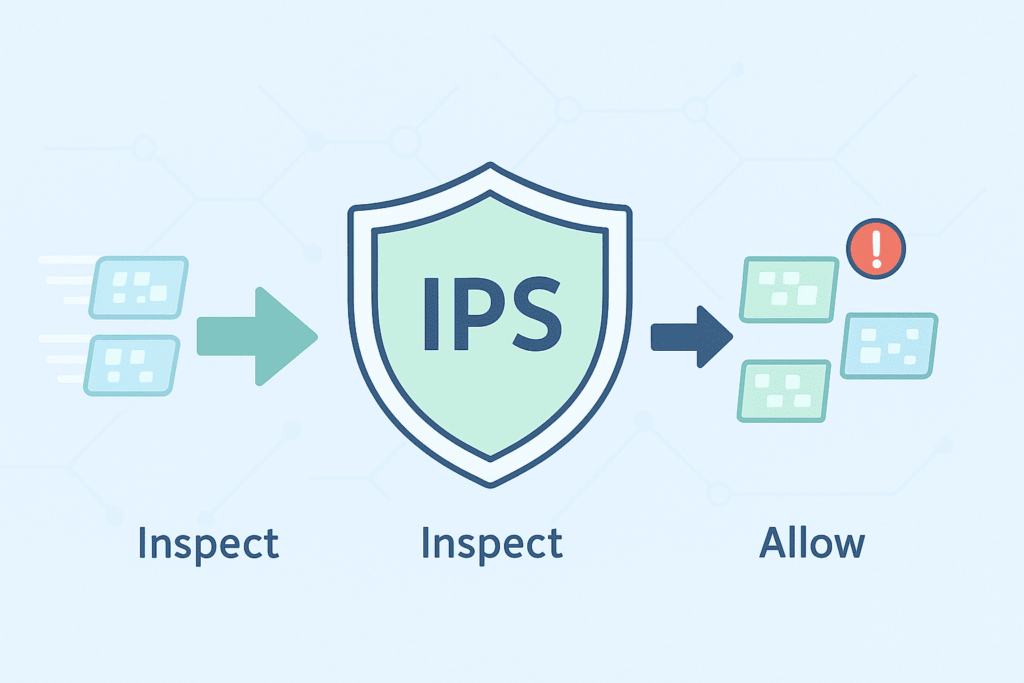

How Inline IPS Works
Network traffic moves in both directions, and inline IPS scrutinizes each data packet. The system combines three main methods: matching known attack signatures, detecting unusual behavior patterns, and enforcing security policies to identify potential threats.
Unlike basic monitoring tools, inline IPS takes direct action when it spots something fishy. It might block specific IP addresses, forcibly end suspicious connections, or simply stop questionable packets from passing through. This quick response prevents attacks from developing further.
According to the European Union Agency for Cybersecurity (ENISA), over 188 major network security incidents were reported by national authorities across the EU in 2024, many of which involved unmonitored or delayed traffic inspection. This underlines how real-time inspection through inline IPS can prevent incidents before escalation. [1]
The system also employs traffic normalization, one of several core IPS functionalities that standardize incoming data streams to expose hidden threats. This process catches hackers who try to sneak past by fragmenting attacks or disguising them within irregular traffic patterns.
- Monitors both incoming and outgoing network traffic
- Uses multiple detection methods to catch threats
- Takes immediate action to stop suspicious activity
- Normalizes traffic to prevent evasion tactics

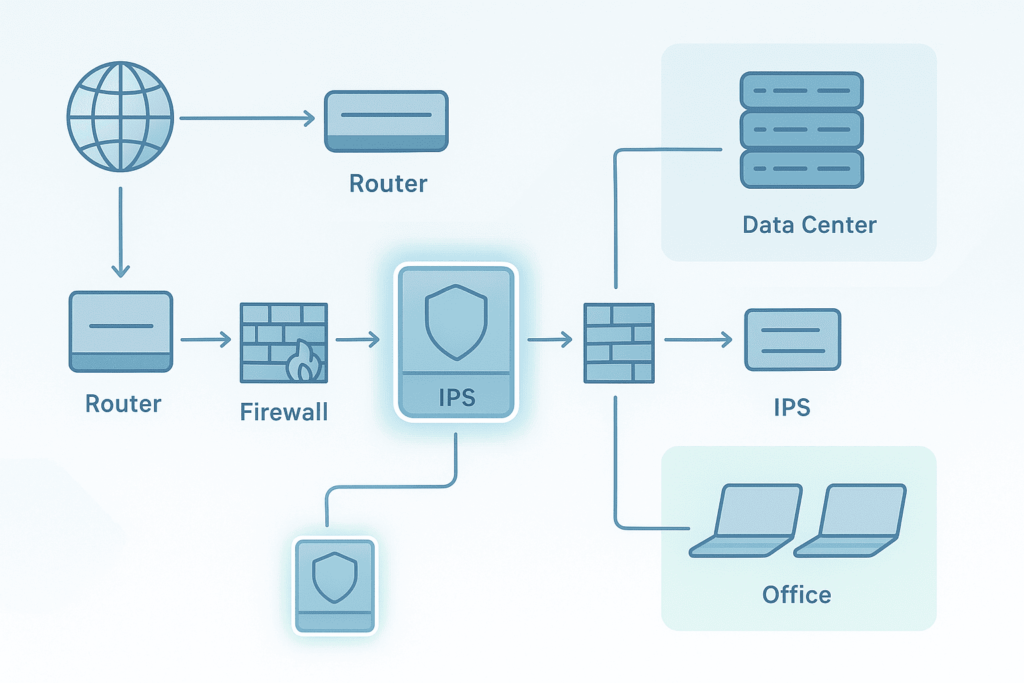

Where to Deploy Inline IPS
Placement strategy significantly impacts IPS effectiveness. The goal is to protect vital network assets while maintaining smooth data flow.
Most organizations position their IPS right behind the firewall, a placement approach aligned with effective IDS and IPS placement strategies that strengthen perimeter defenses and intercept threats that slip through the first barrier.
For mission-critical systems, placing IPS directly in front of important servers adds targeted protection where it matters most. This includes web servers, application servers, and database systems that often attract unwanted attention.
DMZ deployment shields internet-facing services from direct attacks. This positioning helps protect vulnerable public-facing systems without compromising internal network performance.
- Strategic placement behind firewall systems
- Direct protection for essential servers
- DMZ implementation for public-facing services
Benefits of Inline IPS Placement
Direct traffic inspection stands out as the primary advantage of inline IPS placement. By examining data flows in real-time, the system catches and blocks threats before they reach critical network assets.
The 2024 IBM–Ponemon Cost of a Data Breach Report found that the average global breach cost rose to $4.88 million, marking a 10 % increase year over year. Inline IPS helps reduce these losses by blocking malicious traffic before it causes financial or operational damage. [2]
Speed matters in network defense, and inline positioning delivers rapid threat response. Rather than just sending alerts for manual review, the system immediately blocks dangerous traffic patterns without human intervention.
The ability to clean up and standardize network traffic adds another layer of protection. This makes it much harder for attackers to use common evasion techniques that might fool simpler security tools.
- Stops threats before they reach target systems
- Takes action without waiting for human response
- Prevents common evasion techniques
- Updates defenses based on emerging threats
Risks and Considerations
While inline IPS offers strong protection, it requires careful planning to avoid potential pitfalls.
Network dependency presents the biggest challenge, if the IPS fails, it could disrupt all traffic flow. This makes redundancy planning crucial for maintaining business operations.
Performance impact needs attention too. Even milliseconds of inspection time add up when processing thousands of connections, potentially creating noticeable delays if the system isn’t properly sized.
False positives remain an ongoing concern, as overly aggressive rules might block legitimate business traffic. Finding the right balance between security and accessibility requires constant fine-tuning.
- Requires careful redundancy planning
- May impact network performance
- Could block legitimate traffic
- Demands regular maintenance and updates
Best Practices for Inline IPS Deployment
Credits: CCIE NextWave
We recommend placing IPS at strategic network gateways. This ensures monitoring coverage where it matters most.
Redundancy is a must. Using multiple IPS devices or high-availability setups prevents downtime if one fails.
Performance tuning includes right-sizing hardware and refining policies to minimize false positives and latency.
Regularly reviewing logs, tweaking signatures, and updating policies keeps the IPS effective against emerging threats.
Following these practices helps maintain a sturdy security posture without sacrificing network efficiency.
- Deploy at key gateways for maximum visibility.
- Implement redundant IPS appliances.
- Tune hardware and policies to balance security and speed.
- Continuously review and update IPS configurations.
FAQ
How does placing an Intrusion Prevention System inline improve real-time monitoring and automated blocking compared to passive setups?
When an Intrusion Prevention System (IPS) operates in network inline mode, every data packet passes directly through it before reaching the internal network. This placement enables real-time monitoring, traffic analysis, and automated blocking of malicious traffic without delay.
Unlike a passive Intrusion Detection System (IDS), an inline IPS performs deep packet inspection, packet anomaly detection, and protocol analysis, allowing it to detect and block threats immediately. It also combines signature-based detection, anomaly detection, and policy-based detection to reduce false positives while maintaining effective cyber threat response and malware prevention.
What role does inline IPS placement play in balancing malware prevention and baseline performance?
An inline IPS actively scans all network traffic for malicious behavior using exploit signatures, vulnerability signatures, and traffic normalization techniques. Because every packet passes through the system, administrators must balance security efficiency with baseline performance.
Excessive automated rules can slow packet inspection, while overly lenient settings may allow threats to slip through. By applying adaptive security, baseline comparison, and rule enforcement, the IPS maintains stable network performance while preventing malware, ransomware, and spam. This balance ensures effective protection without degrading network flow or user experience.
How can inline IPS placement strengthen firewall integration and improve overall network security posture?
Placing an IPS inline between the firewall and the internal network enhances the overall network security posture. The IPS provides an additional inspection layer that focuses on protocol analysis, traffic anomaly detection, and attack vector monitoring, helping detect threats that a firewall might miss.
Inline IPS placement also supports firewall integration through shared incident logging, synchronized security alerts, and automated connection resets to block source IPs involved in malicious activity. Together, these capabilities improve network visibility, network segment protection, and business risk reduction while supporting endpoint protection and SIEM integration for comprehensive security management.
How does an inline IPS handle evasion technique detection and minimize false positives?
An inline IPS continuously monitors TCP connections, UDP port activity, and packet integrity to identify evasion techniques used by attackers to bypass detection. It employs deep packet inspection, protocol misuse detection, and application layer inspection to uncover hidden malicious behavior.
By applying pattern matching, adaptive security measures, and automated rules, the IPS accurately distinguishes between legitimate and suspicious traffic. Administrator notifications and network event correlation help verify suspect activity identification before blocking, reducing false positives and ensuring uninterrupted legitimate traffic flow while maintaining effective threat containment.
How does inline IPS placement integrate with cloud IPS and hybrid security infrastructure?
Inline IPS placement integrates seamlessly with cloud IPS solutions and hybrid security infrastructure to deliver consistent protection across different environments. Through SIEM integration, intrusion reporting, and regular security updates, organizations can monitor and manage threats across both on-premises and cloud systems.
The inline IPS supports session blocking, connection resets, and network flow analysis to contain malicious traffic effectively. It also works with antivirus, antimalware, and host intrusion prevention (HIPS) tools to enforce unified security policies. This integration strengthens proactive defense, enhances network visibility, and supports a scalable, adaptive security suite for long-term business risk reduction.
Wrapping Up IPS Placement in Network Inline Mode
Inline IPS placement is essential for networks serious about defense. Positioned directly in the traffic path, it detects and blocks threats in real time, stopping attacks before damage occurs. With proper planning, redundancy, and tuning, inline IPS minimizes latency and false positives while dramatically boosting security. Strengthen your defenses with real-time protection where it matters most.
